* Not available for scheduling. Currently undergoing operating procedures writing process. More updates in the coming weeks. *

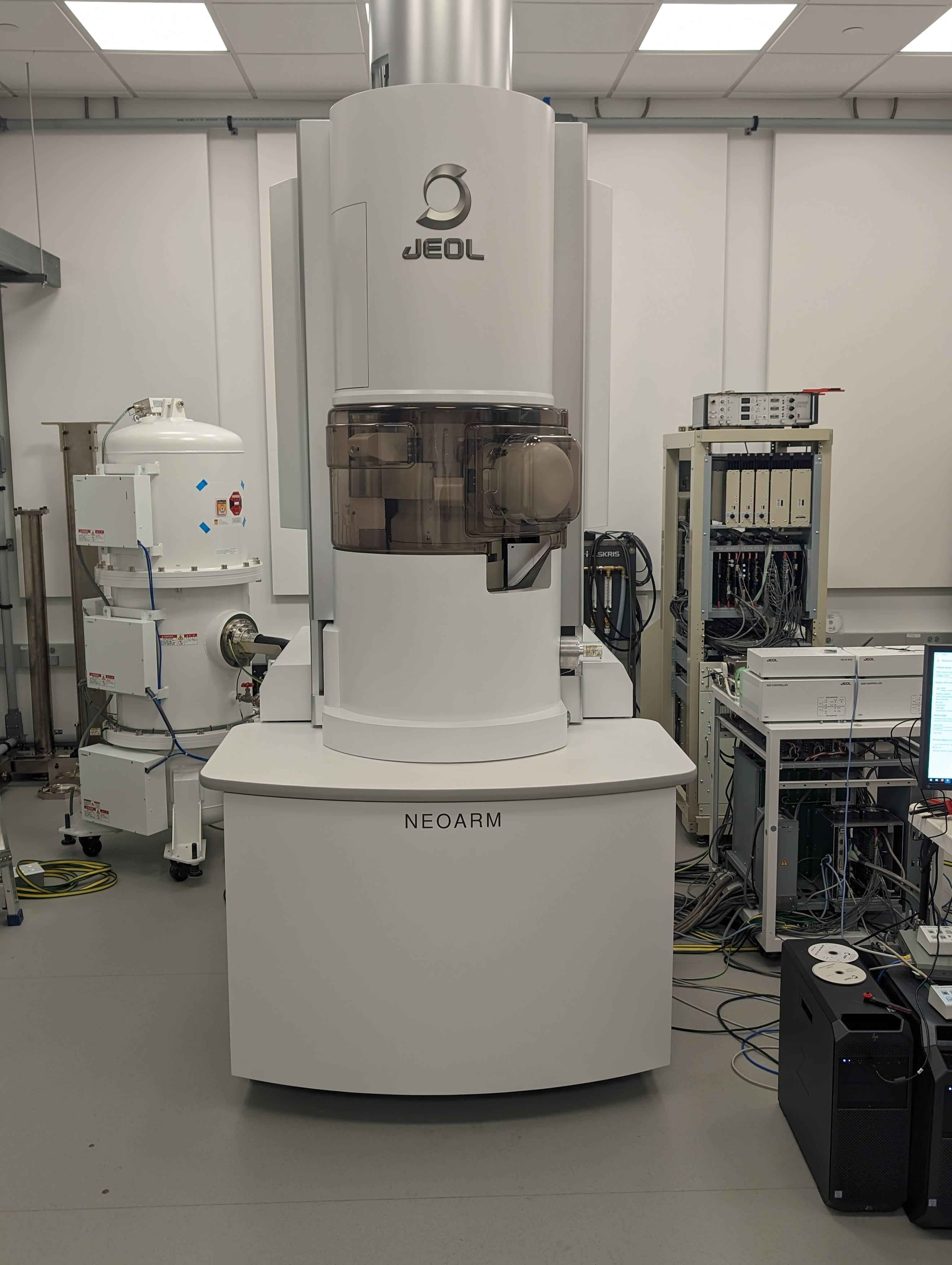

The Jeol NEOARM 200 Aberration Corrected TEM/STEM system includes a field emission gun, energy dispersive X-ray (EDS) and electron energy loss (EELS) spectrometers, 4D STEM camera, IDES Relativity, Synchrony and Luminary systems and several fast and high-resolution cameras for acquisition of images and data.

Highlights

• High Brightness Cold FEG
• 30-200kV
• HR Pole Piece for maximum flexibility between analytical and resolution optimization
• IDES Technology integration
• Dual, large-area SDDs for efficient EDS collection
• Highly stable probe current
• COSMO Automated Corrector alignments

Specifics

NEOARM

• Column and Corrector alignments provided at 30 kV, 80 kV, 200 kV
• Resolution of .23nm in TEM
• +/- 35/30 degrees of tilt in X/Y

STEM Cs-Corrector

• CEOS ASCOR – Second-generation, higher-order corrector
• Enables high-resolution imaging with large convergence angles and high probe currents
• JEOL COSMO automated Corrector alignment routine

IDES Technologies

EDM + Synchrony

• Electrostatic shutter enables ultrafast beam blanking and dose modulation
• On-the-fly dose control while maintaining atomic resolution imaging
• Programmable (pixel-by-pixel), user-defined dose management

Relativity

• Electrostatic sub-framing to enable high-speed (kHz) frame rates
• Integrated with TVIPS XF416 for in situ analysis
• Data output in (common) hdf5 format

Luminary Micro

• Compact Specimen Photoexcitation System
• Laser introduced onto specimen with small spot size (< 40 µm FWHM)
• Localized in situ observation of sintering, growth, melting, and other heating or optical phenomena

In-Situ Specimen Holders & Data Integration

Axon Core & Synchronicity Pro

• Full Session metadata collection
• Automated Specimen Drift Correction

Axon Dose

• Faraday Cup and Precision Electrometer
• Automated Beam Current Measurement
• Automated Recording of Dose Profiles During Imaging

Fusion Select

• MEMS chip specimen holder
• Joule heating chips for fast specimen heating experiments
• Electrical chips for biasing measurements

Poseidon Select

• MEMS Liquid Cell holder
• Integrated Gamry electronics for electrochemistry measurements

Atmosphere 210

• MEMS Gas Cell holder
• RGA Mass Spectrometer with integrated vacuum and mass-flow controller
